Protective ramp
system B

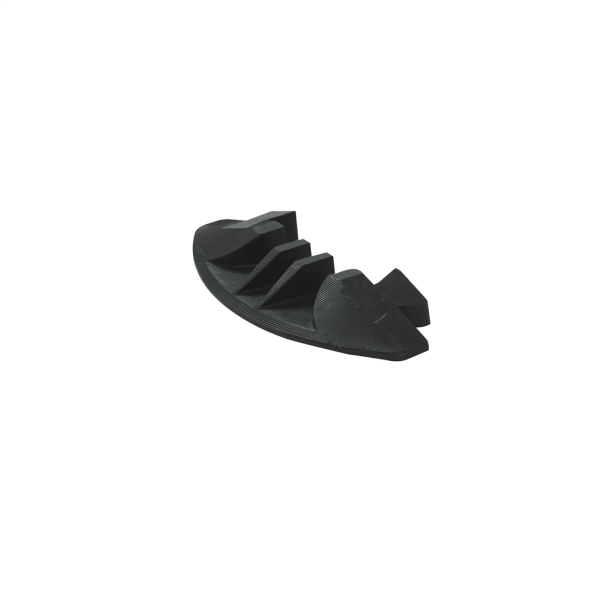

End piece
system B
End piece
Dette er en skaffevare med ca. 2 ugers levering.
Protective ramp system B
·with 3 channels for cables and hoses
·load capacity: 20 t
·dimensions of passage channels: 50 x 50 mm
·outer dimensions: 600 mm x 1000 mm x 80 mm
·1 set (2 pins) of connecting pins included
By means of connecting pins the elements can be connected without fastening material.
Passage ducts are protected by covers that can be opened.
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 3544f5ce-5017-4875-a775-9d9330814c00.pdf | 134.24KB | Download | |
| f583d1e8-aaf6-44e7-949c-cb73af54d56b.pdf | 134.10KB | Download |
Protective ramp | system A | Ramp - middle piecedimensions: 600 x 880 x 75 mmdimensions of the diffuser channels: 2x 65 x 50 mm und 1x 55 x 50 mm
Model/Varenr.:
SCH-33934
Vægt:
20
kg.
Protective ramp | system A | End piece without adapterdimensions: 200 x 600 x 75 mmdimensions of the diffuser channels: 3x 60 x 50 mm
Model/Varenr.:
SCH-33934E
Vægt:
3,41
kg.
