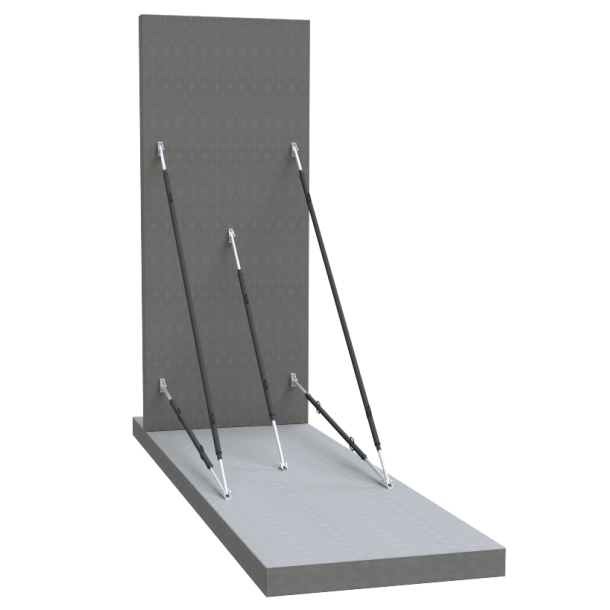

Directional brace
Adjustment range: 0.90 - 1.50 m Load at 45° in compression: 40,0 - 40,0 kN
with end joints
Adjustment range: 0.90 - 1.50 m Load at 45° in compression: 40,0 - 40,0 kN
with end joints
Dette er en skaffevare med ca. 2 ugers levering.
Brace
-with two galvanized threaded spindles
-Left-hand and right-hand thread
-Adjustment by simple spindling using welded handles on the outer tube
-Left-handed rotation: Spindling in
-Right-hand rotation: Spindling out
-Design: black coated
-Spindle diameter: Ø 47 / 43.5 mm
-Tube diameter: 70 x 4.0 mm
Application examples as tension and compression props for the most versatile uses in everyday construction site work,for example for
- Supporting a wide variety of system formwork,wall and column formwork
- Adjusting and supporting precast concrete elements,in particular hollow or shell walls
- Supporting column formwork tubes
Advantages:
- Can withstand tension and compression
- Robust handles at an ergonomic height for easy adjustment by turning the middle section and for easy transportation
- Can be adjusted to the millimetre using opposing internal threads on both sides
- Self-locking thread
- Flexible end joints for any inclined and angled position
