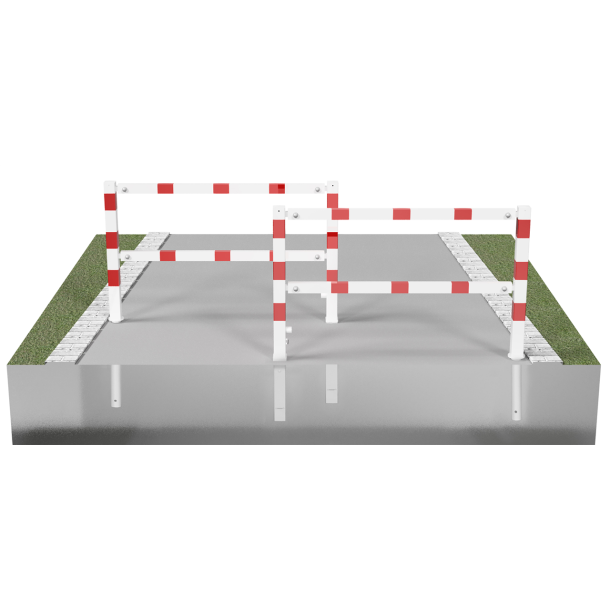

Access barriers
with triangular locking mechanism
swing-back
with top bar
hot-dip galvanized
total width: 2000 mm
with triangular locking mechanism
swing-back
with top bar
hot-dip galvanized
total width: 2000 mm
Dette er en skaffevare med ca. 2 ugers levering.Dette er en skaffevare med ca. 2 ugers levering.
Access barriers with triangular lock
acc. with DIN 3223,swing-back,consists of:
1 stationary post,revolving
Square tube 70 x 70 mm,above ground 900 mm
1 removable post,with triangular locking mechanism
DIN 3223,square tube 70 x 70 mm,above ground 900 mm
1 ground socket,part.-No. 470.10
Square tube 80 x 80 mm,500 mm long
1 top bar
Square tube 60 x 40 mm
with top bar
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 380a1368-5d52-4b95-95cd-17e7d70a2229.pdf | 111.22KB | Download | |
| 4b909cc6-9aa4-4786-9569-e8759b09724f.pdf | 3.03MB | Download | |
| 9170a921-2da7-4882-a683-3749709776b8.pdf | 111.22KB | Download | |
| cf4f5dc4-566e-430b-bafb-a068f16b558e.pdf | 3.03MB | Download |
Access barriers | with triangular locking mechanism | swing-back | with top bar | hot-dip galvanized | total width: 1500 mm
Model/Varenr.:
SCH-410_15
Vægt:
25,6
kg.
Stationary access barriers | for bolting on site | with top and quarter-bent bar | hot-dip galvanized | total width: 1500 mm
Model/Varenr.:
SCH-416_15
Vægt:
25,1
kg.
Access barriers | with triangular lock | swing-back | with top and quarter-bent bar | hot-dip galvanized | total width: 1500 mm
Model/Varenr.:
SCH-412_15
Vægt:
31,1
kg.
Stationary access barriers | for bolting on site | with top bar | hot-dip galvanized | total width: 1500 mm
Model/Varenr.:
SCH-414_15
Vægt:
19,6
kg.
