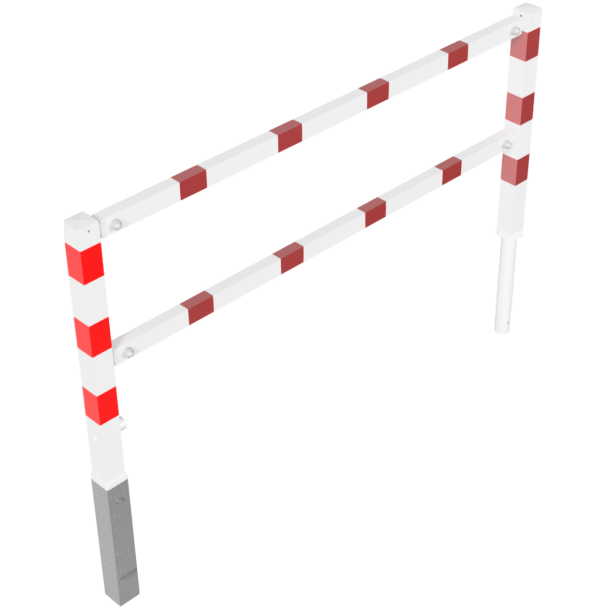

Access barriers
with triangular lock
swing-back
with top and quarter-bent bar
hot-dip galvanized and white coatedwith red reflecting stripes
total width: 2000 mm
with triangular lock
swing-back
with top and quarter-bent bar
hot-dip galvanized and white coatedwith red reflecting stripes
total width: 2000 mm
Dette er en skaffevare med ca. 2 ugers levering.Dette er en skaffevare med ca. 2 ugers levering.
Access barriers with triangular lock
acc. with DIN 3223,swing-back,consists of:
1 stationary post,revolving
Square tube 70 x 70 mm,above ground 900 mm
1 removable post,with triangular locking mechanism
DIN 3223,square tube 70 x 70 mm,above ground 900 mm
1 ground socket,part.-No. 470.10
Square tube 80 x 80 mm,500 mm long
1 top bar
Square tube 60 x 40 mm
with top and quarter-bent bar
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 0f972887-20ac-47bd-95e6-aee6c612bbc4.pdf | 123.17KB | Download | |
| 8f4b72ee-d647-43d9-bfa2-3f16efa8c9a3.pdf | 123.17KB | Download | |
| a238c82f-17e0-4314-a31c-ed6add9821d5.pdf | 3.09MB | Download | |
| ef5a809d-5f63-484b-9545-b6be42ae3c57.pdf | 3.09MB | Download |
