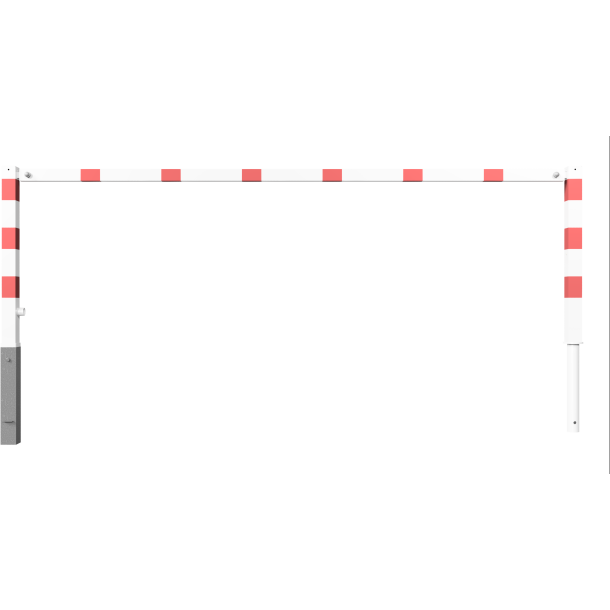

Access barriers
with triangular locking mechanism
swing-back
with top bar
hot-dip galvanized and white coatedwith red reflecting stripes
total width: 3000 mm
with triangular locking mechanism
swing-back
with top bar
hot-dip galvanized and white coatedwith red reflecting stripes
total width: 3000 mm
Dette er en skaffevare med ca. 2 ugers levering.Dette er en skaffevare med ca. 2 ugers levering.
Access barriers with triangular lock
acc. with DIN 3223,swing-back,consists of:
1 stationary post,revolving
Square tube 70 x 70 mm,above ground 900 mm
1 removable post,with triangular locking mechanism
DIN 3223,square tube 70 x 70 mm,above ground 900 mm
1 ground socket,part.-No. 470.10
Square tube 80 x 80 mm,500 mm long
1 top bar
Square tube 60 x 40 mm
with top bar
