Swing barrier
with bracing tube and
pull rope reinforcement
to be fixed by plugs, hot-dip galvanized and red coated with white reflecting rings
Barrier arm length: 4500 mm
for padlock
with bracing tube and
pull rope reinforcement
to be fixed by plugs, hot-dip galvanized and red coated with white reflecting rings
Barrier arm length: 4500 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.

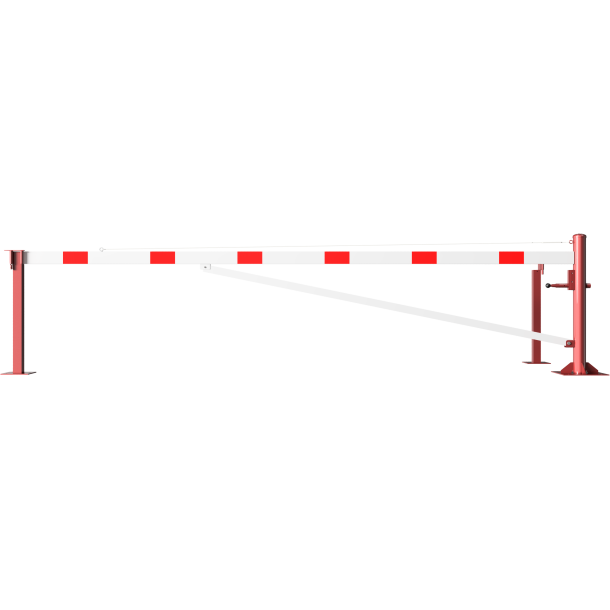

Swing barrier
Barrier can be swiveled horizontally,with bracing tube and
pull rope reinforcement. Locking mechanism at the swiveling
post closed or opened by pin locking in 4 positions (every
90°),fitted for a padlock or with triangular locking mechanism
acc. to DIN 3223 or Euro profile cylinder lock,including
two supporting posts
Swiveling post: Steel tube Ø 102 mm,hot-dip galvanized and red coated
Barrier arm: Aluminium tube 100 x 50 mm,coated
white with red reflecting stripes
Supporting post: Steel tube 70 x 70 mm,hot-dip galvanized and white coated
(2 piece)
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 9021918b-a993-49c9-8db6-462f6701c01d.pdf | 106.64KB | Download |
