Swing barrier
for casting in concrete, hot-dip galvanized and red coated with white reflecting rings
clear width: 2500 mm
for padlock
for casting in concrete, hot-dip galvanized and red coated with white reflecting rings
clear width: 2500 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.

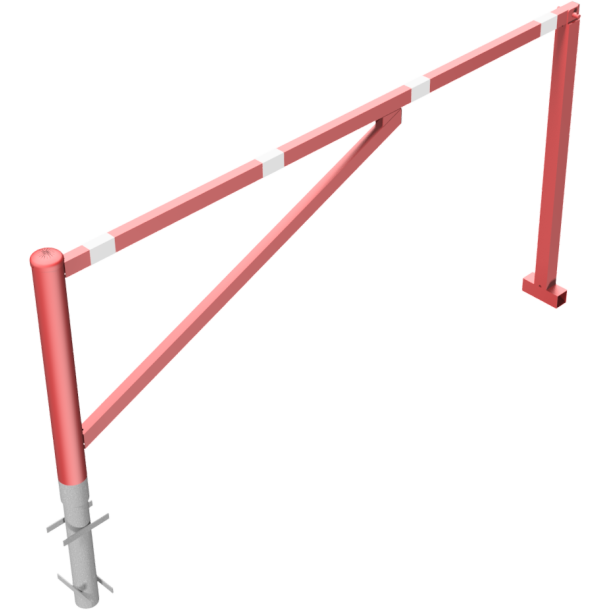

Swing barrier
Barrier can be swiveled horizontally,with two
supporting posts. Locking mechanism at the
opened or closed barrier at the respective
supporting post,fitted for a padlock,triangular
locking mechanism acc. to DIN 3223 or Euro
profile cylinder lock.
Swiveling post: Steel tube Ø 102 mm
Barrier arm: Steel tube 60 x 40 mm
Supporting post: Steel tube 70 x 70 mm
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 8ecb7e2e-a6af-4a57-bfb6-3b0efcf4934c.pdf | 134.33KB | Download | |
| 977a1a9c-5c95-4906-8c44-1c0ed6029207.pdf | 4.62MB | Download | |
| 9b11f353-f910-414f-82e1-d074465f69b9.pdf | 134.34KB | Download | |
| b06536a5-6baa-49f1-8a4b-0407d781d373.pdf | 4.62MB | Download |
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 2500 mm | with Euro profile cylinder lock
Model/Varenr.:
SCH-413_250ZB
Vægt:
52,92
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 2500 mm | with triangular lock
Model/Varenr.:
SCH-413_250FB
Vægt:
52,23
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 3000 mm | for padlock
Model/Varenr.:
SCH-413_300VB
Vægt:
54,49
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 3000 mm | with Euro profile cylinder lock
Model/Varenr.:
SCH-413_300ZB
Vægt:
55,5
kg.
