Swing barrier
with bracing tube and
pull rope reinforcement
for casting in concrete, hot-dip galvanized and white coated with red reflecting stripes
Barrier arm length: 6000 mm
for padlock
with bracing tube and
pull rope reinforcement
for casting in concrete, hot-dip galvanized and white coated with red reflecting stripes
Barrier arm length: 6000 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.

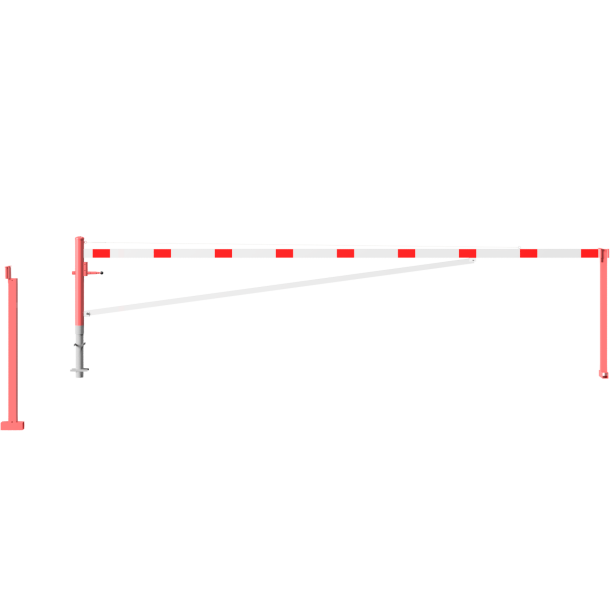

Swing barrier
Barrier can be swiveled horizontally,with bracing tube and
pull rope reinforcement. Locking mechanism at the swiveling
post closed or opened by pin locking in 4 positions (every
90°),fitted for a padlock or with triangular locking mechanism
acc. to DIN 3223 or Euro profile cylinder lock,including
two supporting posts
Swiveling post: Steel tube Ø 102 mm,hot-dip galvanized and red coated
Barrier arm: Aluminium tube 100 x 50 mm,coated
white with red reflecting stripes
Supporting post: Steel tube 70 x 70 mm,hot-dip galvanized and white coated
(2 piece)
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 0d71482d-a713-4c17-b7d2-f7bd387901f8.pdf | 85.88KB | Download | |
| 6e8e4e91-d6f1-4ec1-bc1f-fec953aebe74.pdf | 4.58MB | Download | |
| eb903bff-d5f3-43c0-b97d-77745eb718f2.pdf | 85.89KB | Download | |
| ebe4f9b9-0b0a-40af-84c3-c05b8fda46c5.pdf | 4.58MB | Download |
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 2500 mm | for padlock
Model/Varenr.:
SCH-413_250VB
Vægt:
51,91
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 2500 mm | with Euro profile cylinder lock
Model/Varenr.:
SCH-413_250ZB
Vægt:
52,92
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 2500 mm | with triangular lock
Model/Varenr.:
SCH-413_250FB
Vægt:
52,23
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 3000 mm | for padlock
Model/Varenr.:
SCH-413_300VB
Vægt:
54,49
kg.
