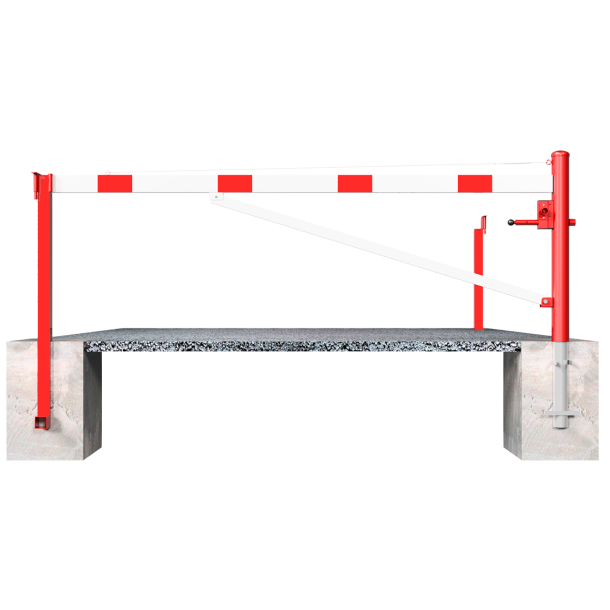

Swing barrier
with bracing tube and
pull rope reinforcement
for casting in concrete, hot-dip galvanized and white coated with red reflecting stripes
Barrier arm length: 3000 mm
with triangular lock
with bracing tube and
pull rope reinforcement
for casting in concrete, hot-dip galvanized and white coated with red reflecting stripes
Barrier arm length: 3000 mm
with triangular lock
Dette er en skaffevare med ca. 2 ugers levering.
Swing barrier
Barrier can be swiveled horizontally,with bracing tube and
pull rope reinforcement. Locking mechanism at the swiveling
post closed or opened by pin locking in 4 positions (every
90°),fitted for a padlock or with triangular locking mechanism
acc. to DIN 3223 or Euro profile cylinder lock,including
two supporting posts
Swiveling post: Steel tube Ø 102 mm,hot-dip galvanized and red coated
Barrier arm: Aluminium tube 100 x 50 mm,coated
white with red reflecting stripes
Supporting post: Steel tube 70 x 70 mm,hot-dip galvanized and white coated
(2 piece)
Height: approx. 950 mm above ground
