Swing barrier
for casting in concrete, hot-dip galvanized and red coated with white reflecting rings
clear width: 4000 mm
for padlock
for casting in concrete, hot-dip galvanized and red coated with white reflecting rings
clear width: 4000 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.

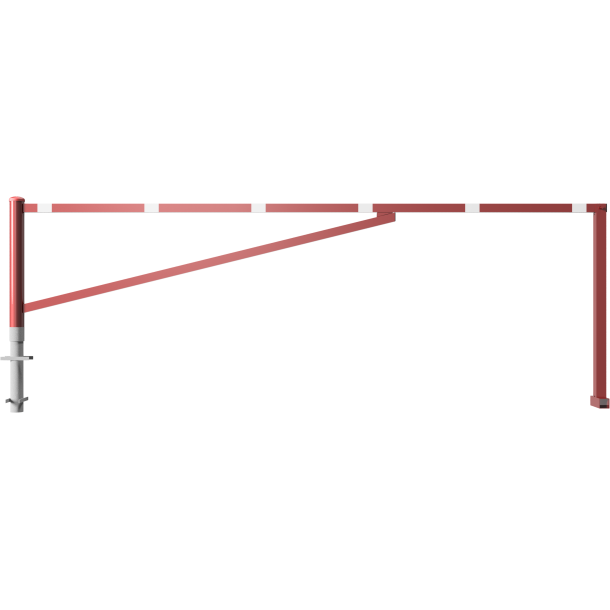

Swing barrier
Barrier can be swiveled horizontally,with two
supporting posts. Locking mechanism at the
opened or closed barrier at the respective
supporting post,fitted for a padlock,triangular
locking mechanism acc. to DIN 3223 or Euro
profile cylinder lock.
Swiveling post: Steel tube Ø 102 mm
Barrier arm: Steel tube 60 x 40 mm
Supporting post: Steel tube 70 x 70 mm
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 13f1ddec-c062-44b6-8df0-727f218595a0.pdf | 121.29KB | Download | |
| 78665635-8ac1-42ae-b91f-c92937a00acd.pdf | 4.65MB | Download | |
| 796bf532-3834-4cc1-a503-5ed449e5332f.pdf | 4.65MB | Download | |
| ef51686b-0537-4a39-80e1-2ca96768a724.pdf | 121.29KB | Download |
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 2500 mm | for padlock
Model/Varenr.:
SCH-413_250VB
Vægt:
51,91
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 2500 mm | with Euro profile cylinder lock
Model/Varenr.:
SCH-413_250ZB
Vægt:
52,92
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 2500 mm | with triangular lock
Model/Varenr.:
SCH-413_250FB
Vægt:
52,23
kg.
Swing barrier | for casting in concrete, hot-dip galvanized and red coated with white reflecting rings | clear width: 3000 mm | for padlock
Model/Varenr.:
SCH-413_300VB
Vægt:
54,49
kg.
