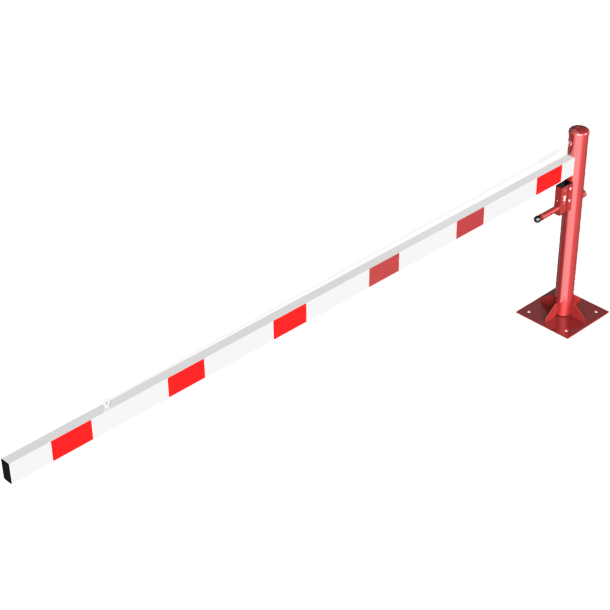

Swing barrier
with pull rope reinforcement
to be fixed by plugs, hot-dip galvanized and red coated with white reflecting rings
Barrier arm length: 3500 mm
with Euro profile cylinder lock
with pull rope reinforcement
to be fixed by plugs, hot-dip galvanized and red coated with white reflecting rings
Barrier arm length: 3500 mm
with Euro profile cylinder lock
Dette er en skaffevare med ca. 2 ugers levering.
Swing barrier
Barrier can be swiveled horizontally,with pull rope
reinforcement. Locking mechanism closed or opened
by pin locking in four positions (every 90°),fitted for a
padlock or with triangular locking mechanism acc. to
DIN 3223 or Euro profile cylinder lock.
Swiveling post: Steel tube Ø 102 mm,hot-dip galvanized
and coated red
Barrier arm: Aluminium tube 100 x 50 mm,coated
white with red reflecting stripes
Height: approx. 950 mm above ground
