Swing barrier
for casting in concrete, hot-dip galvanized and red coated with white reflecting rings
clear width: 2500 mm
with Euro profile cylinder lock
for casting in concrete, hot-dip galvanized and red coated with white reflecting rings
clear width: 2500 mm
with Euro profile cylinder lock
Dette er en skaffevare med ca. 2 ugers levering.

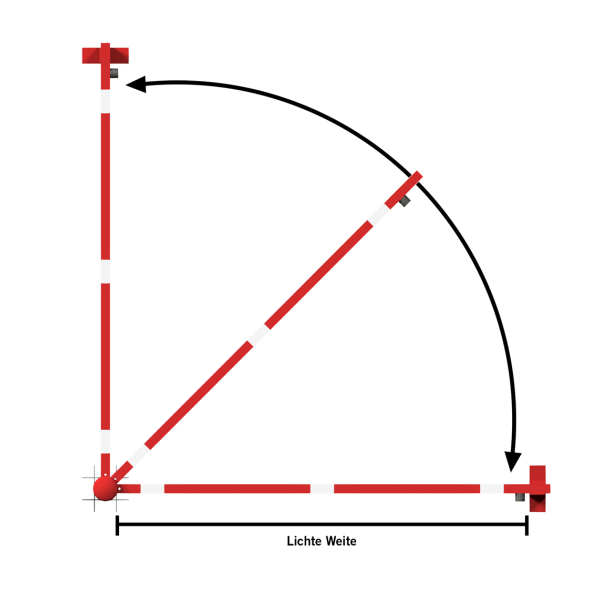

Swing barrier
Barrier can be swiveled horizontally,with two
supporting posts. Locking mechanism at the
opened or closed barrier at the respective
supporting post,fitted for a padlock,triangular
locking mechanism acc. to DIN 3223 or Euro
profile cylinder lock.
Swiveling post: Steel tube Ø 102 mm
Barrier arm: Steel tube 60 x 40 mm
Supporting post: Steel tube 70 x 70 mm
Height: approx. 950 mm above ground
