Swing barrier
for casting in concrete, hot-dip galvanized and red coated with white reflecting rings
clear width: 4500 mm
with Euro profile cylinder lock
for casting in concrete, hot-dip galvanized and red coated with white reflecting rings
clear width: 4500 mm
with Euro profile cylinder lock
Dette er en skaffevare med ca. 2 ugers levering.

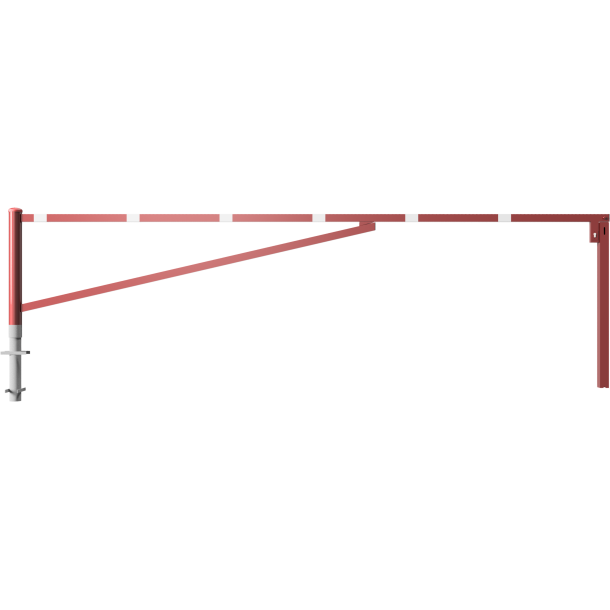

Swing barrier
Barrier can be swiveled horizontally,with two
supporting posts. Locking mechanism at the
opened or closed barrier at the respective
supporting post,fitted for a padlock,triangular
locking mechanism acc. to DIN 3223 or Euro
profile cylinder lock.
Swiveling post: Steel tube Ø 102 mm
Barrier arm: Steel tube 60 x 40 mm
Supporting post: Steel tube 70 x 70 mm
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 1e603c4f-df56-46e6-b876-9853b502739c.pdf | 4.65MB | Download | |
| 3ad5a5ab-a79c-4071-9f9c-df9d4c9872c7.pdf | 4.65MB | Download | |
| 9e61242e-b56d-4d2c-8dba-69e98158e727.pdf | 118.64KB | Download | |
| f05a8f04-e41b-4455-82bd-cf07802c2415.pdf | 118.63KB | Download |
