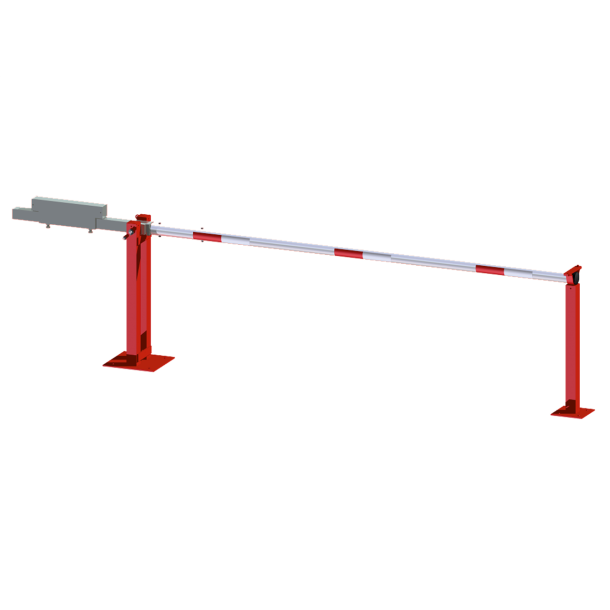

Access barrier with counterweight
and supporting post
clear width: 3000 mm
for padlock
and supporting post
clear width: 3000 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.
Access barrier
Main support: Steel construction 70 x 70 mm
square tube with ground plate
360 x 360 x 8 mm for plugging down,including
4 holes Ø 20 mm for anchors,hot-dip
galvanized and powder-coated red
Supporting post: Steel tube 70 x 70 mm with
ground plate 220 x 220 x 8 mm including 4
holes Ø 20 mm for anchors
Barrier arm: Thick-walled Ø 80 mm aluminium
tube with counterweight,uncoated with white/
red reflecting stripes
Locking mechanism: At the supporting post,can be fixed by the main support pin when the
arm is open
Total width: Clear width + approx. 900 mm
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 6c4e32f0-b343-47aa-a2d3-dadd84b50e86.pdf | 3.59MB | Download | |
| 84a5d476-a641-4728-8c23-1b849b6936a0.pdf | 3.59MB | Download | |
| 8ee085e3-fca5-4832-bbc4-427a2b558b3e.pdf | 128.51KB | Download | |
| d320e359-d2e2-44db-90b4-e8ce90b9b04d.pdf | 128.52KB | Download |
Access barrier with counterweight | and supporting post | clear width: 3000 mm | with Euro profile cylinder lock
Model/Varenr.:
SCH-411_30ZPB
Vægt:
73,98
kg.
Access barrier with counterweight | and supporting post | clear width: 3000 mm | with triangular lock
Model/Varenr.:
SCH-411_30FPB
Vægt:
74,12
kg.
Access barrier with counterweight | and supporting post | clear width: 4000 mm | for padlock
Model/Varenr.:
SCH-411_40VPB
Vægt:
97,02
kg.
Access barrier with counterweight | and supporting post | clear width: 4000 mm | with Euro profile cylinder lock
Model/Varenr.:
SCH-411_40ZPB
Vægt:
98,27
kg.
