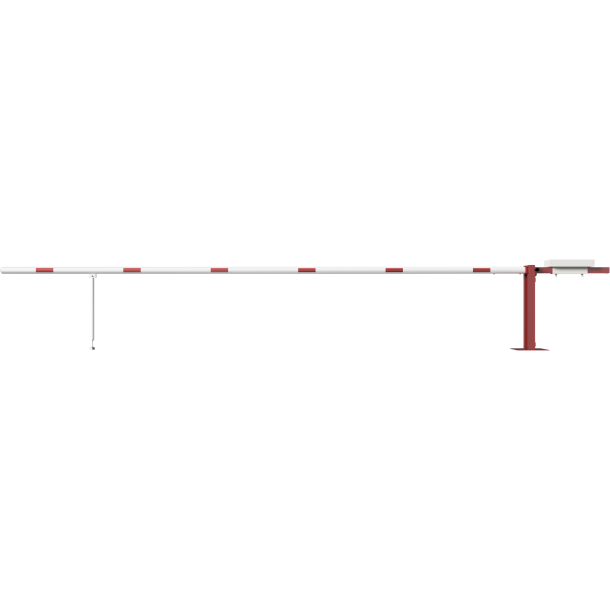

Access barrier with counterweight
and swing post
clear width: 6000 mm
for padlock
and swing post
clear width: 6000 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.
Access barrier
Main support: Steel construction 70 x 70 mm
square tube with ground plate
360 x 360 x 8 mm for plugging down,including
4 holes Ø 20 mm for anchor,hot-dip galvanized
and powder-coated red
Barrier arm: Thick-walled Ø 80 mm aluminium
tube with counterweight,uncoated with white/
red reflecting stripes
Swing post: Aluminium tube with foot
Locking mechanism: At the main support with
a locking pin,for fixing the arm in open or
closed position
Total width: Clear width + approx. 900 mm
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 166d4711-3559-4aa5-8585-c42e64a3f698.pdf | 1.15MB | Download | |
| 625405f8-cca6-4665-9848-970597d960b0.pdf | 128.44KB | Download | |
| 71b7209a-33d2-415b-a804-2883aa55e914.pdf | 1.15MB | Download | |
| f1e321ba-1197-4c2f-93c0-0613d9a0de9f.pdf | 128.43KB | Download |
Access barrier with counterweight | and supporting post | clear width: 3000 mm | for padlock
Model/Varenr.:
SCH-411_30VPB
Vægt:
72,73
kg.
Access barrier with counterweight | and supporting post | clear width: 3000 mm | with Euro profile cylinder lock
Model/Varenr.:
SCH-411_30ZPB
Vægt:
73,98
kg.
Access barrier with counterweight | and supporting post | clear width: 3000 mm | with triangular lock
Model/Varenr.:
SCH-411_30FPB
Vægt:
74,12
kg.
Access barrier with counterweight | and supporting post | clear width: 4000 mm | for padlock
Model/Varenr.:
SCH-411_40VPB
Vægt:
97,02
kg.
