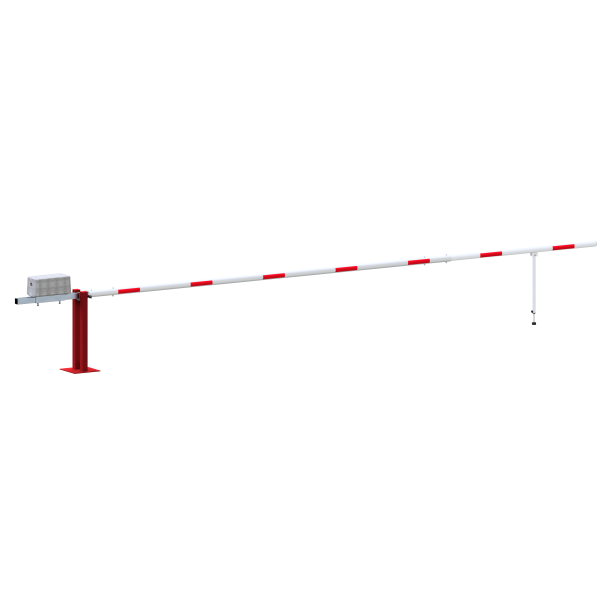

Access barrier with counterweight
and swing post
clear width: 7000 mm
for padlock
and swing post
clear width: 7000 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.
Access barrier
Main support: Steel construction 70 x 70 mm
square tube with ground plate
360 x 360 x 8 mm for plugging down,including
4 holes Ø 20 mm for anchor,hot-dip galvanized
and powder-coated red
Barrier arm: Thick-walled Ø 80 mm aluminium
tube with counterweight,uncoated with white/
red reflecting stripes
Swing post: Aluminium tube with foot
Locking mechanism: At the main support with
a locking pin,for fixing the arm in open or
closed position
Total width: Clear width + approx. 900 mm
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 16d45efd-6ecf-483a-b7a4-fe7241ec1c78.pdf | 129.68KB | Download | |
| 23654b3a-a034-4dcf-aeaa-4bafa3ba1714.pdf | 1.14MB | Download | |
| 7a2ac3e5-6c4d-42c6-adbe-c168a1de0cad.pdf | 129.68KB | Download | |
| e13bc4b2-b785-42c4-a9b0-fcc0bf530299.pdf | 1.14MB | Download |
Access barrier with counterweight | and supporting post | clear width: 3000 mm | for padlock
Model/Varenr.:
SCH-411_30VPB
Vægt:
72,73
kg.
Access barrier with counterweight | and supporting post | clear width: 3000 mm | with Euro profile cylinder lock
Model/Varenr.:
SCH-411_30ZPB
Vægt:
73,98
kg.
Access barrier with counterweight | and supporting post | clear width: 3000 mm | with triangular lock
Model/Varenr.:
SCH-411_30FPB
Vægt:
74,12
kg.
Access barrier with counterweight | and supporting post | clear width: 4000 mm | for padlock
Model/Varenr.:
SCH-411_40VPB
Vægt:
97,02
kg.
