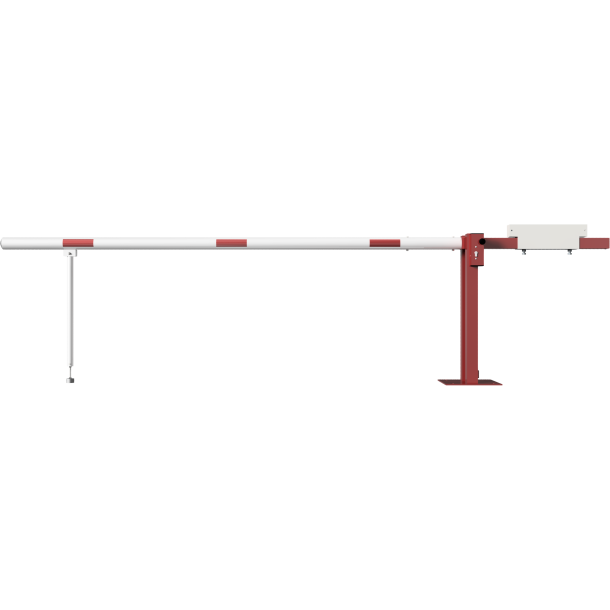

Access barrier with counterweight
and swing post
clear width: 3000 mm
with Euro profile cylinder lock
and swing post
clear width: 3000 mm
with Euro profile cylinder lock
Dette er en skaffevare med ca. 2 ugers levering.
Access barrier
Main support: Steel construction 70 x 70 mm
square tube with ground plate
360 x 360 x 8 mm for plugging down,including
4 holes Ø 20 mm for anchor,hot-dip galvanized
and powder-coated red
Barrier arm: Thick-walled Ø 80 mm aluminium
tube with counterweight,uncoated with white/
red reflecting stripes
Swing post: Aluminium tube with foot
Locking mechanism: At the main support with
a locking pin,for fixing the arm in open or
closed position
Total width: Clear width + approx. 900 mm
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 2d033413-9188-432d-ae79-7747ea6a112d.pdf | 1.19MB | Download | |
| 3836c54e-5f08-4356-a35a-6e3b50f534bc.pdf | 1.19MB | Download | |
| 87e22e04-d18e-4d96-96f9-742af4f22a4d.pdf | 125.09KB | Download | |
| 97f805f6-6247-4889-ab18-16e9ded86a5a.pdf | 125.09KB | Download |
