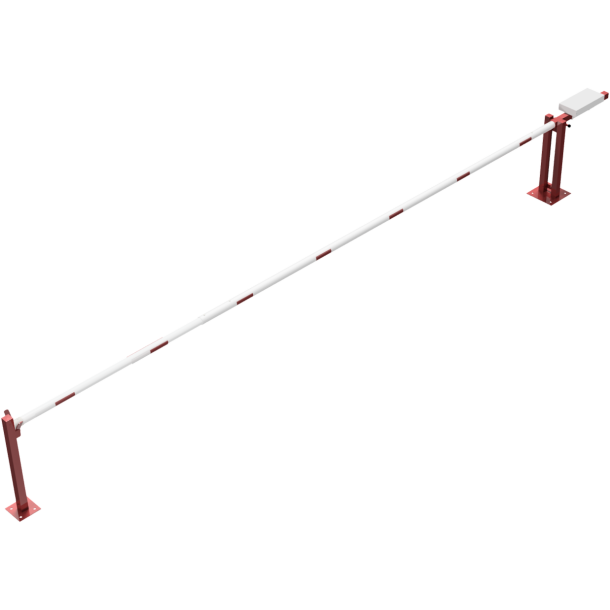

Access barrier with counterweight
and supporting post
clear width: 7000 mm
with Euro profile cylinder lock
and supporting post
clear width: 7000 mm
with Euro profile cylinder lock
Dette er en skaffevare med ca. 2 ugers levering.
Access barrier
Main support: Steel construction 70 x 70 mm
square tube with ground plate
360 x 360 x 8 mm for plugging down,including
4 holes Ø 20 mm for anchors,hot-dip
galvanized and powder-coated red
Supporting post: Steel tube 70 x 70 mm with
ground plate 220 x 220 x 8 mm including 4
holes Ø 20 mm for anchors
Barrier arm: Thick-walled Ø 80 mm aluminium
tube with counterweight,uncoated with white/
red reflecting stripes
Locking mechanism: At the supporting post,can be fixed by the main support pin when the
arm is open
Total width: Clear width + approx. 900 mm
Height: approx. 950 mm above ground
