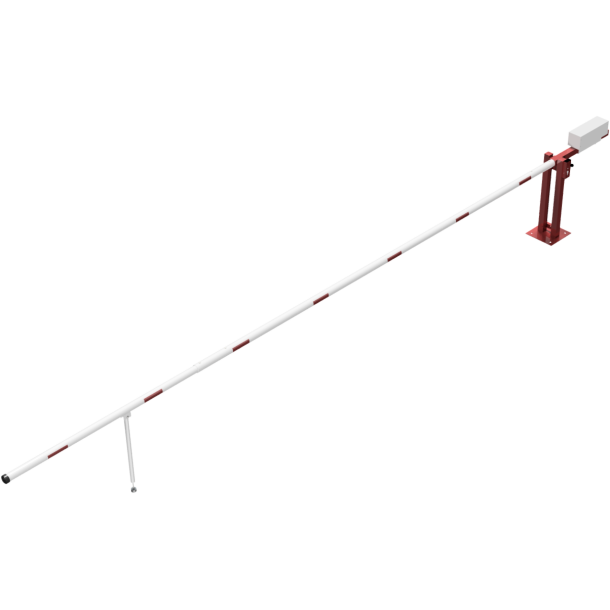

Access barrier with counterweight
and swing post
clear width: 7000 mm
with Euro profile cylinder lock
and swing post
clear width: 7000 mm
with Euro profile cylinder lock
Dette er en skaffevare med ca. 2 ugers levering.
Access barrier
Main support: Steel construction 70 x 70 mm
square tube with ground plate
360 x 360 x 8 mm for plugging down,including
4 holes Ø 20 mm for anchor,hot-dip galvanized
and powder-coated red
Barrier arm: Thick-walled Ø 80 mm aluminium
tube with counterweight,uncoated with white/
red reflecting stripes
Swing post: Aluminium tube with foot
Locking mechanism: At the main support with
a locking pin,for fixing the arm in open or
closed position
Total width: Clear width + approx. 900 mm
Height: approx. 950 mm above ground
