Manual barrier
with pneumatic spring
and fixed pole support
clear width: 4000 mm
for padlock
with pneumatic spring
and fixed pole support
clear width: 4000 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.

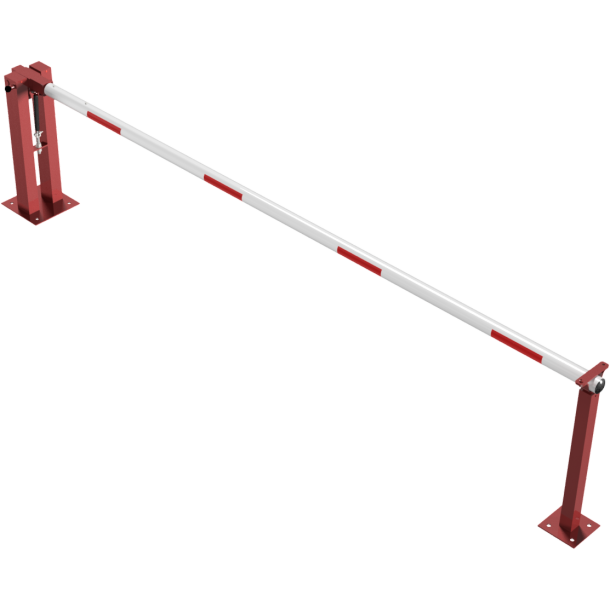

Manual barrier
with pneumatic spring and fixed pole support
Main support: Steel construction 120 x 80 mm
square tube with base plate 360 x 360 x 8 mm
for plugging down,including 4 holes Ø 20 mm
for anchor,hot-dip galvanized and powdercoated
red,barrier arm can be fixed in open
and closed position
Supporting post: Steel tube 70 x 70 mm with
base plate 220 x 220 x 8 mm,including 4 holes
Ø 20 mm for anchor
Barrier arm: Thick-walled Ø 80 mm aluminium
tube,powder-coated with red reflecting stripes
Locking mechanism at the post support
Total width: Clear width + approx. 180 mm
Height: approx. 950 mm above ground
| Titel | Type | Størrelse | Download |
|---|---|---|---|
| 00586811-d74d-4697-8b01-1d96b66716a6.pdf | 123.09KB | Download | |
| 2a62ce33-031b-4afe-bd3f-2f35ad3deb3e.pdf | 3.56MB | Download | |
| 3ee18a8d-b5ea-44a1-ba5b-84b87ad5effb.pdf | 3.56MB | Download | |
| faefdf75-8174-4766-bf9c-2a5e6709fe28.pdf | 123.09KB | Download |
