Manual barrier
with pneumatic spring
and hinged pole support
clear width: 4000 mm
for padlock
with pneumatic spring
and hinged pole support
clear width: 4000 mm
for padlock
Dette er en skaffevare med ca. 2 ugers levering.

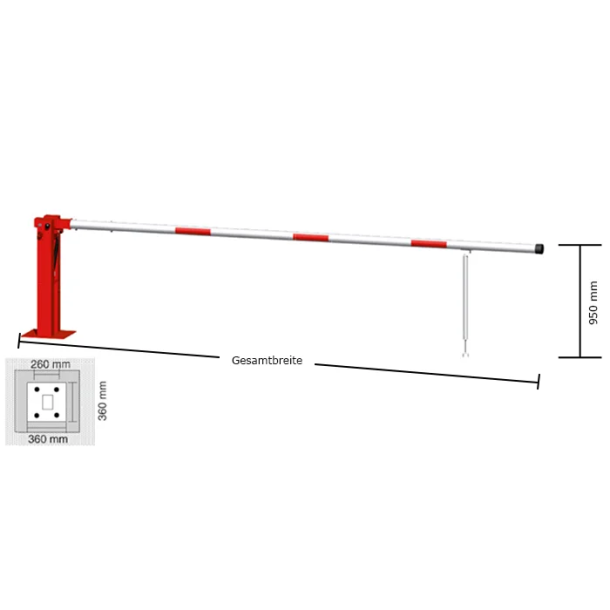

Manual barrier
with pneumatic spring and hinged pole support
Main support: Steel construction 120 x 80 mm
square tube with base plate 360 x 360 x 8 mm
for plugging down,including 4 holes Ø 20 mm
for anchor,hot-dip galvanized and powder-coated
red,barrier arm can be fixed in open and closed
position
Pole support: Aluminium pipe with foot
Barrier arm: Thick-walled Ø 80 mm aluminium
tube,powder-coated with red reflecting stripes
Locking mechanism at the main support
Total width: Clear width + approx. 180 mm
Height: approx. 950 mm above ground
